XTR Magnetic Base - 367 x 254
Couldn't load pickup availability
Product Details
Fits: Raise3D E2
(Please see full printer list below on the 'Fits & Contents' tab)

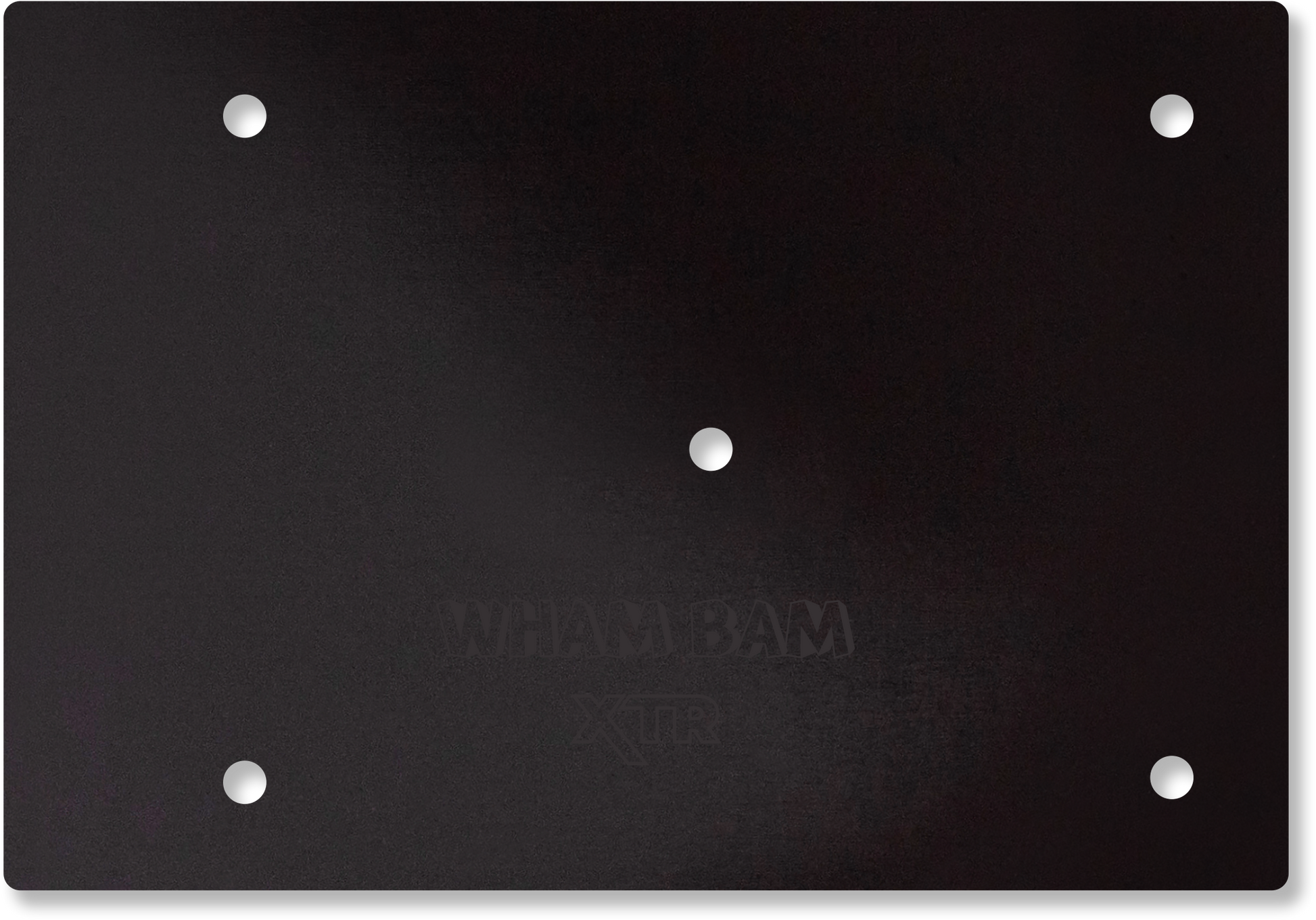

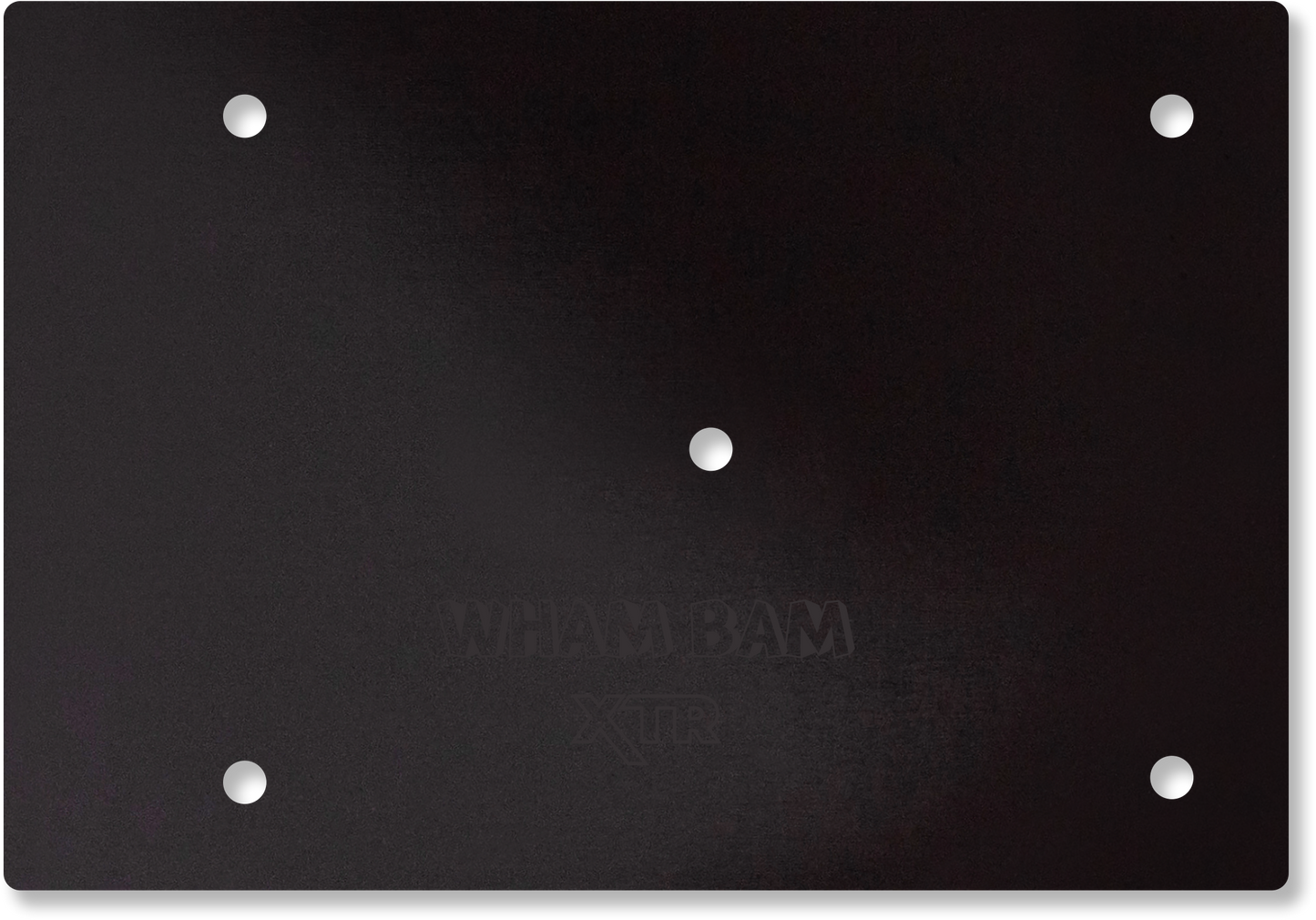

Our XTR high strength Magnetic Base for FDM is an extra thick, 2 mm magnet that improves the already most powerful FDM magnet available on the market. Our eXTReme line is designed for the increased performance needed on Prosumer and Industrial machines to provide more stiffness to resist peel and bending forces that come with using engineering grade filaments. These powerful, temperature resistance magnets ensure the build plate stays perfectly aligned during printing and come pre-backed with high-temperature 3M adhesive for easy installation. XTR is the ultimate solution for superior performance and reliability in FDM printing. Explore more info on the Flexible Build System.
Printer Fits:
• Raise3D E2

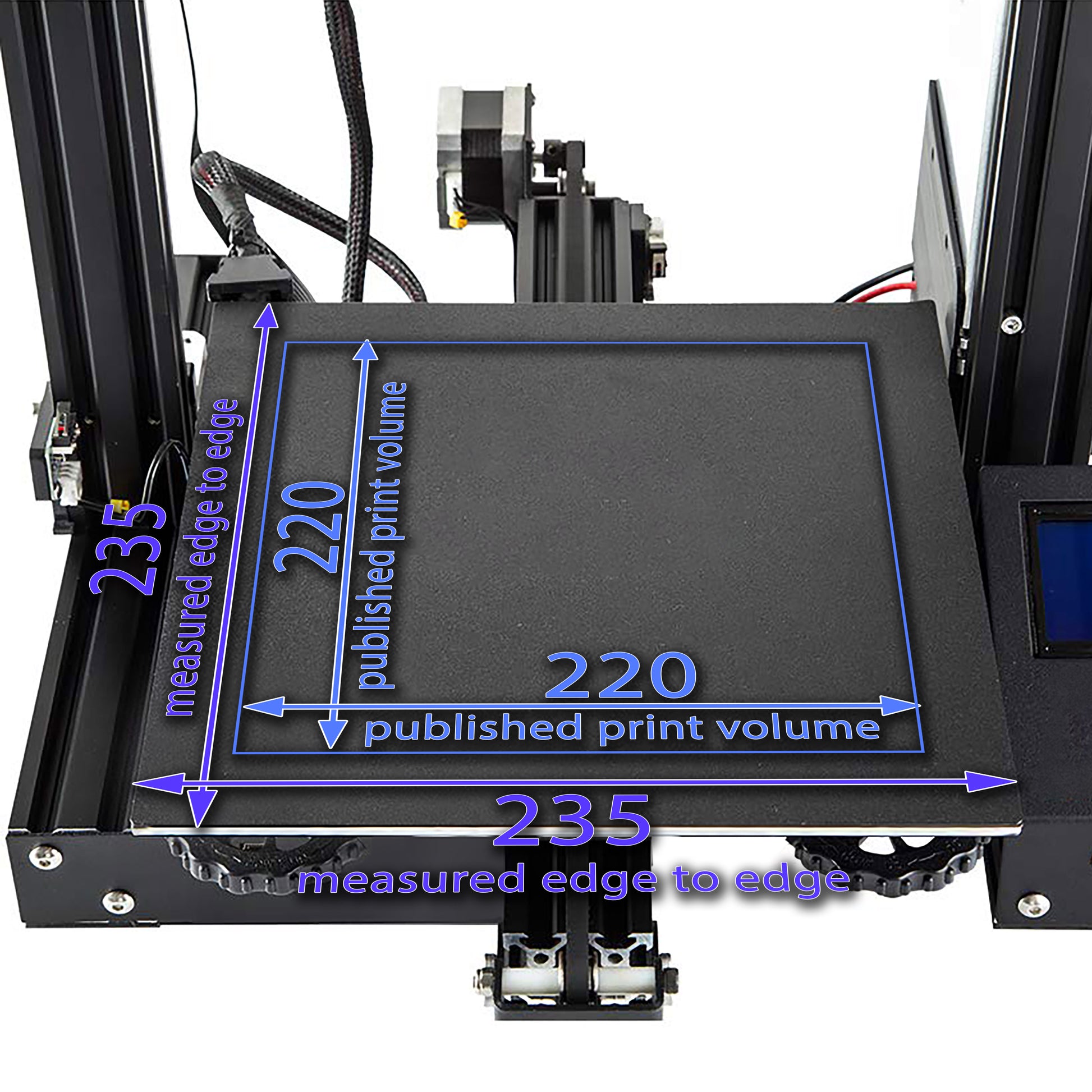

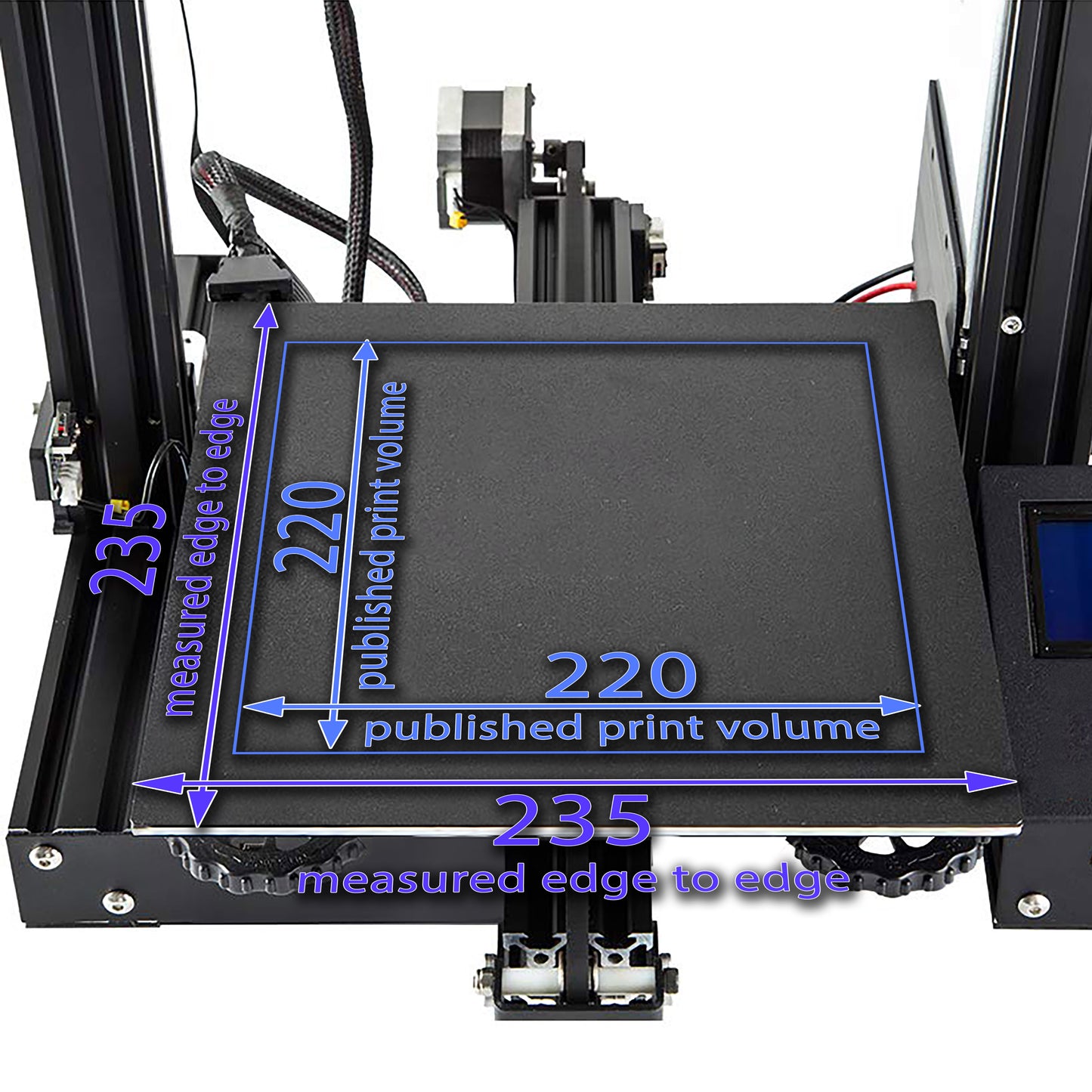

If you have a printer similar to the one described above and believe our solution could work for your printer, please follow our easy instructions on measuring your build plate. Let us know if your printer matches our specifications or is even close! We’d love to hear about it, and you might even receive a discount on Wham Bam® merchandise for your efforts. Click here for more info.
- 1 XTR Magnetic Base
- 367 x 254 mm
- Magnetic Base 2 mm
Magnetic Base with 3M Glue rated to 150°C continual use
Please follow these steps when applying a new Magnetic Base:
- Remove old magnet (if any), and clean the bed well to remove any glue. Use isopropyl alcohol and a fresh paper towel.
- Use 220 grit sandpaper to rough up the metal surface uniformly and remove any excess contaminants. If your surface is painted, try to break through the paint layer with the sandpaper at least partially.
- Clean with 90% isopropyl alcohol and a fresh paper towel. Repeat with alcohol and a fresh paper towel a few times until the paper towel comes away clean. Do not use shop rags, wipes, etc., as these will propagate contaminants back to the surface. Use only fresh paper towels.
- Let the bed completely dry before applying the magnet.
- Let 3M cure for a full 72 hours before use.
Magnetic Base install video clip:
If your machine has automatic bed leveling, run the leveling process and set your gap such that the first layer is well squished. For more details on achieving the right first layer squish, refer to this bed leveling guide.
If your printer uses manual leveling, follow the same guide for instructions on the leveling process.
Full support info can be found on our support page.
