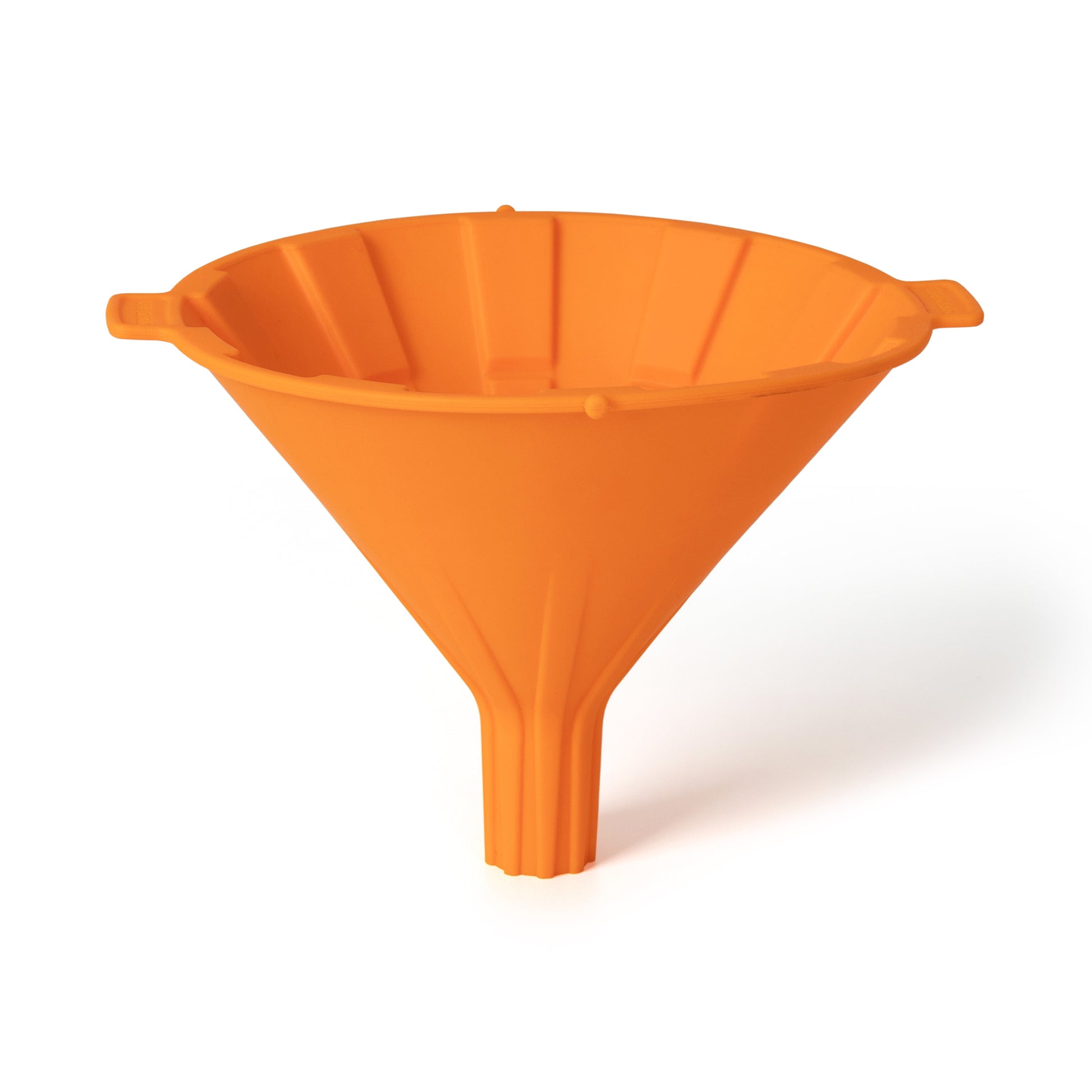

ULTIM8 FUN - Ultimate Funnel for Resin
Couldn't load pickup availability
Product Details
Introducing the ULTIM8 FUN, the ultimate funnel designed for resin printing! This innovative tool is packed with features for transferring and filtering resin and IPA that makes it a must-have for any resin-related work.

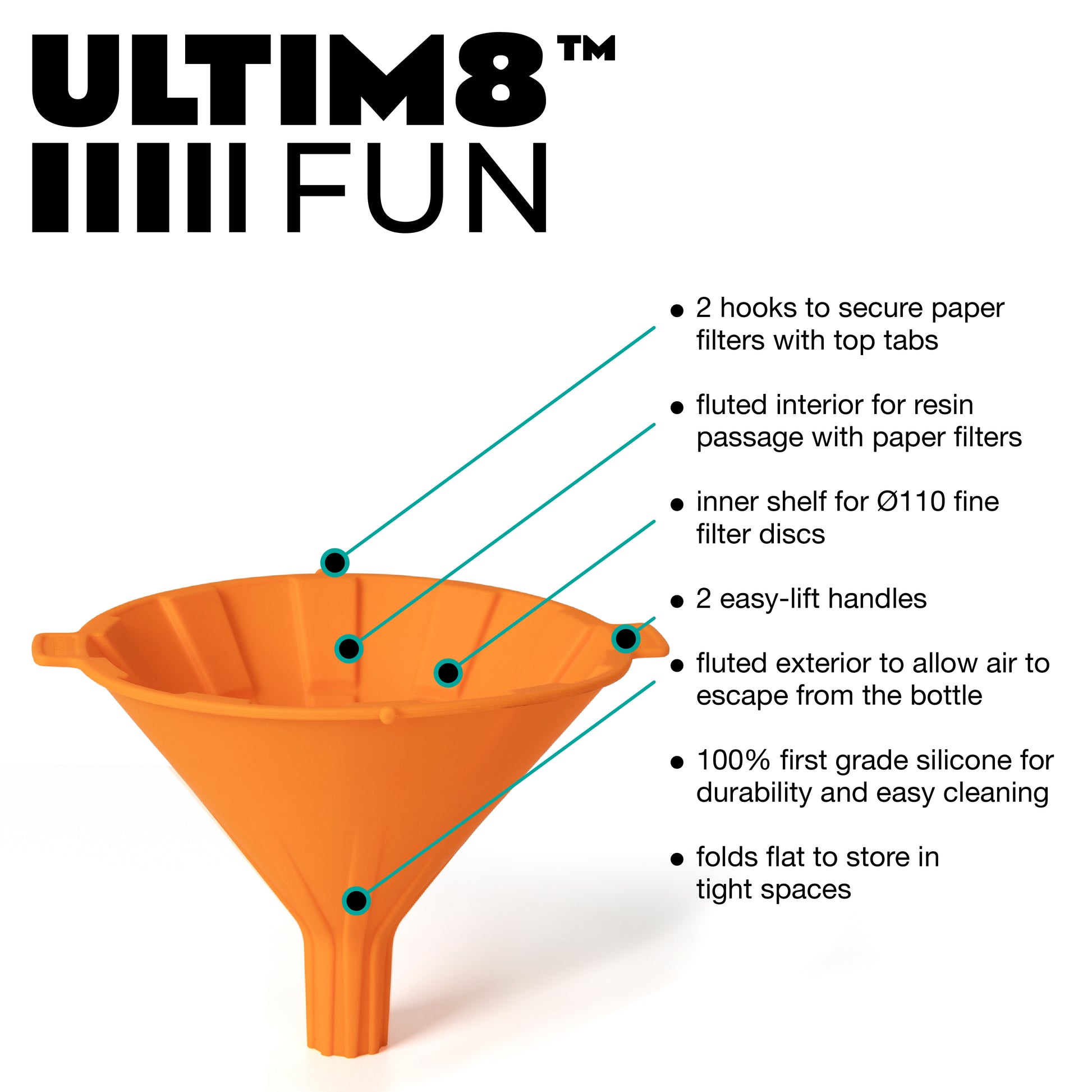

Key Features:
- 100% First-Grade Silicone: Highly durable and resistant to IPA, resins, and other corrosive chemicals, while also being easy to clean.
- External Fluted Design: Ensures smooth and fast transfers by allowing air to escape from the bottle.
- Fluted Interior: Optimized for resin transfer when using conical paper filters.
- 2 Filter Hooks: Secure your paper filters with ease using the top tab hooks.
- 2 Handles: Provides convenient lifting and transferring capabilities.
- Inner Ledge for Custom Filter Shelf: Designed to fit a printable Ø110 fine filter disc shelf. ( Printable shelf available here ).
- Compact Design: Folds flat for easy storage in tight spaces.
- Effortless Cleaning: Wipes clean with minimal effort.
- 1 ULTIM8 FUN
- Dimensions: Ø83 x 132 tall
Click here for the downloadable instructions.
Please note: Upon initial receipt of your ULTIM8 FUN, it may require reshaping due to potential deformation caused by heat or conditions during shipping. Simply massage the funnel, and it will return to its original shape. Similarly, if the product is stored for extended periods while folded in a box or storage container, it may also experience minor deformation.
Here is an adapter for narrow mouth bottles.
To use:

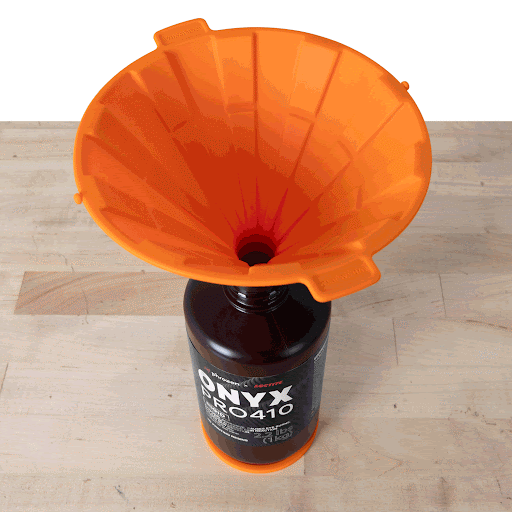

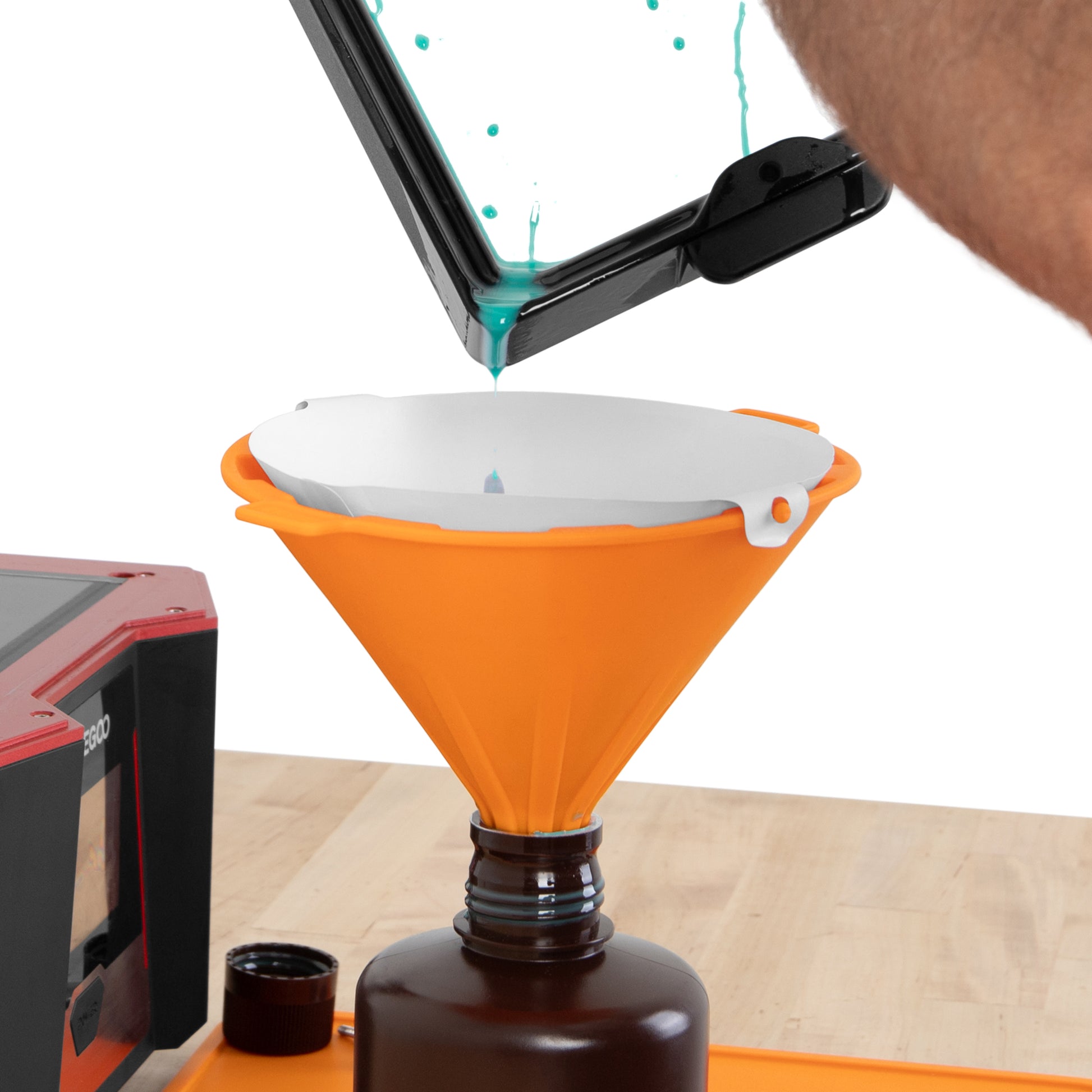

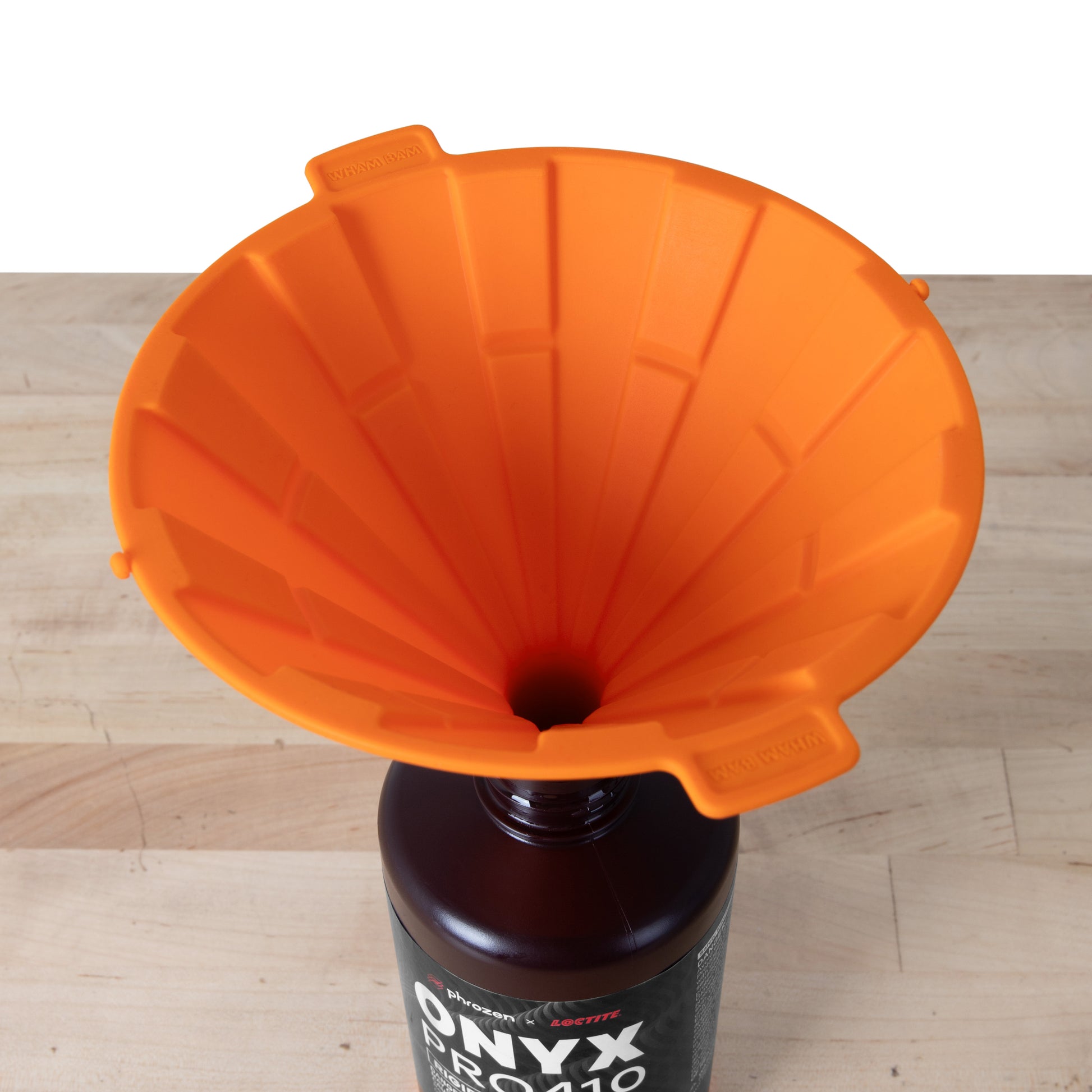

To use while pouring and filtering resin from the resin vat back to the bottle simply place the ULTIM8 FUN into the bottle, and add a paper conical filter. If the filter has top tabs, you can lock these onto the top hooks. Pour your resin through. When done, throw away the filter cone, and wipe down with IPA. It can be compressed to fit into your wash stations.
To use while pouring and filtering IPA, first effectuate a rough pour through paper conical filters as described above, then use our 3D-Printable printable shelf. Place this on the inner ledge of the ULTIM8 FUN and place a round Ø110 disc of fine filter paper to do a fine particulate filter of your IPA to clean it as much as possible. Repeat as many times as needed. The high grade silicone will not be harmed by IPA or chemicals in resins. When done, throw away the filter cone, and wipe down with IPA. It can be compressed to fit into your wash stations.
Tip:For optimal results, begin by pouring the isopropyl alcohol (IPA) into a glass jar, ensuring that you avoid transferring any sediment or concentrated resin from the bottom. Expose the jar to sunlight for 2-3 days, allowing the hardened particulates to settle. Once the solution has been clarified, carefully decant the upper, clearer portion through the ULTIM8 FUN filtration system using a paper disk to capture any remaining impurities.
