Resin HotBox Mega - 3D Printer Enclosure
Couldn't load pickup availability
Product Details
(Please see full printer list below on the 'Fits' collapsible)
If you want to print ABS, Nylon, PC, and other high-temperature filaments, an enclosure is one of the best upgrades for your machine. The Wham Bam Resin HotBox® Mega is a lightweight, easy to assemble, and easy to store away solution!
See the Resin HotBox® in action, check out our Resin HotBox® Mega YouTube Playlist .
The Resin HotBox® Mega is made of high-grade Nylon 600D fabric with fire-resistant coating and lined with a metallic heat-deflecting internal liner that sandwiches around a strong, lightweight honeycomb insulating structure. The front panel has a large clear window for maximum visibility that easily lifts up and is secured by velcro for full access to your printer.
Take a look at the entire Resin HotBox® line including accessories.

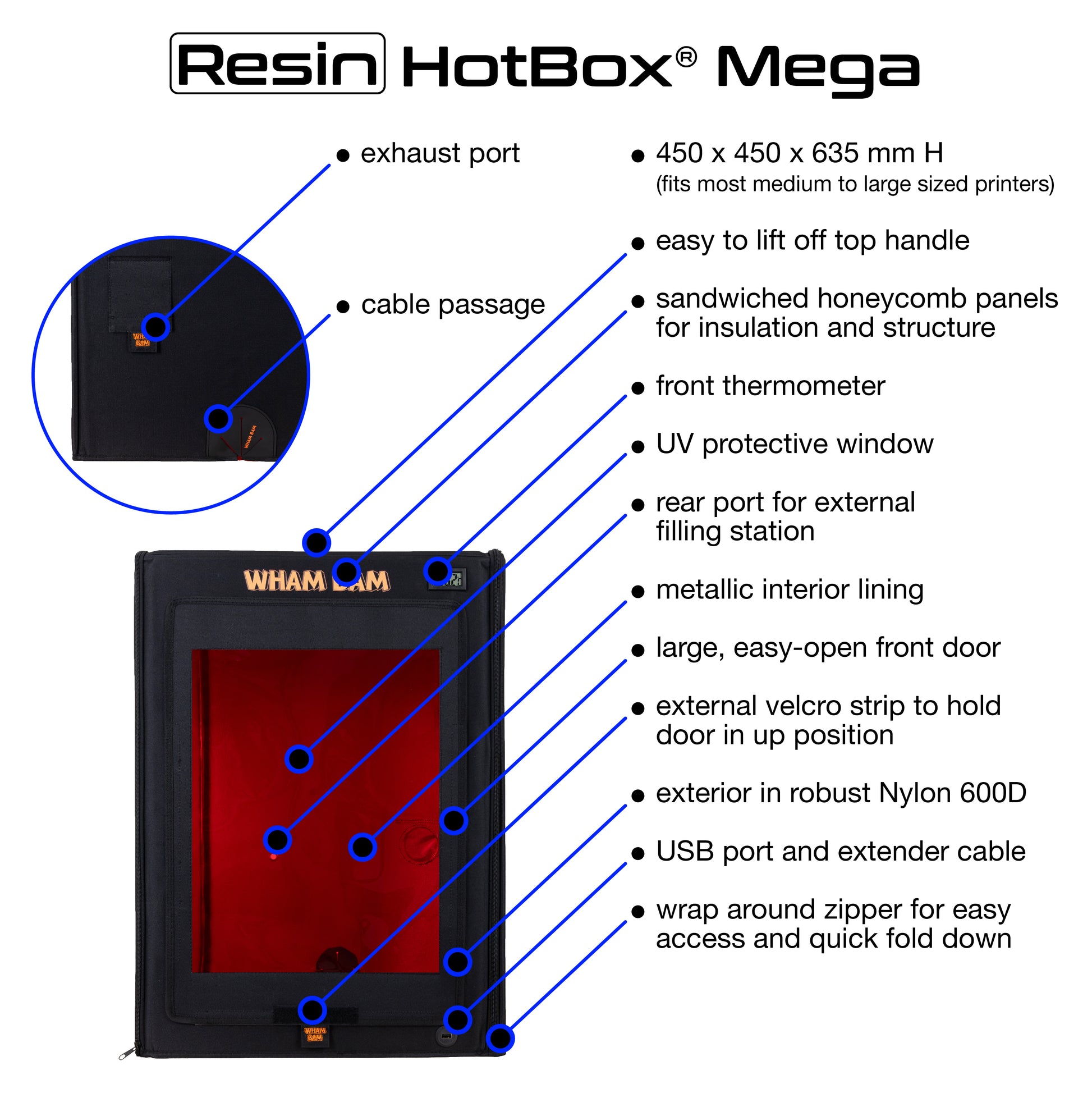

Features include:
- Lightweight semi-rigid construction
- Excellent insulating properties
- Folds up flat, is easy to store and transport
- Front USB outlet and extension cable
- Cable passage for power or other cables
- Full view front window covered with an anti-UV film to allow viewing the print
- Built-in thermometer (two LR44 batteries not included)
- Passage with cover for user-added fume extraction and air filtering
- A set of loops to hold an anti-UV LED light bar
- Built-in top handle to lift the enclosure when needed
- Rear port for external filling station
- AnyCubic Photon M3 Max
- AnyCubic Photon M3 Plus
- AnyCubic Photon M3 Premium
- AnyCubic Photon Mono M5
- AnyCubic Photon Mono M5s
- Anycubic Photon Mono 2 (or snug fit on Resin HotBox )
- Creality Halot Lite
- Elegoo Saturn 8K (or snug fit on Resin HotBox )
- Elegoo Saturn 2 (or snug fit on Resin HotBox )
- Elegoo Saturn 3 (or snug fit on Resin HotBox )
- Elegoo Saturn 3 Ultra (or snug fit on Resin HotBox )
- Elegoo Saturn 4
- Elegoo Saturn 4 Ultra
- Phrozen Sonic Mighty 8K
Designed to fit most medium and large resin 3D printers and may fit printers not listed above in our confirmed list. Please check the measurements against your printer.
Do you have a printer compatible with our Resin HotBox® Mega? Please inform us if your printer fits but is not on our confirmed list. We’d love to hear about it, and you might even receive a discount on Wham Bam® merchandise for your efforts. Click here for more info.
- 1 Resin HotBox® Mega
- 1 USB Port Extender
- 1 plug to cover the filling hole when not in use

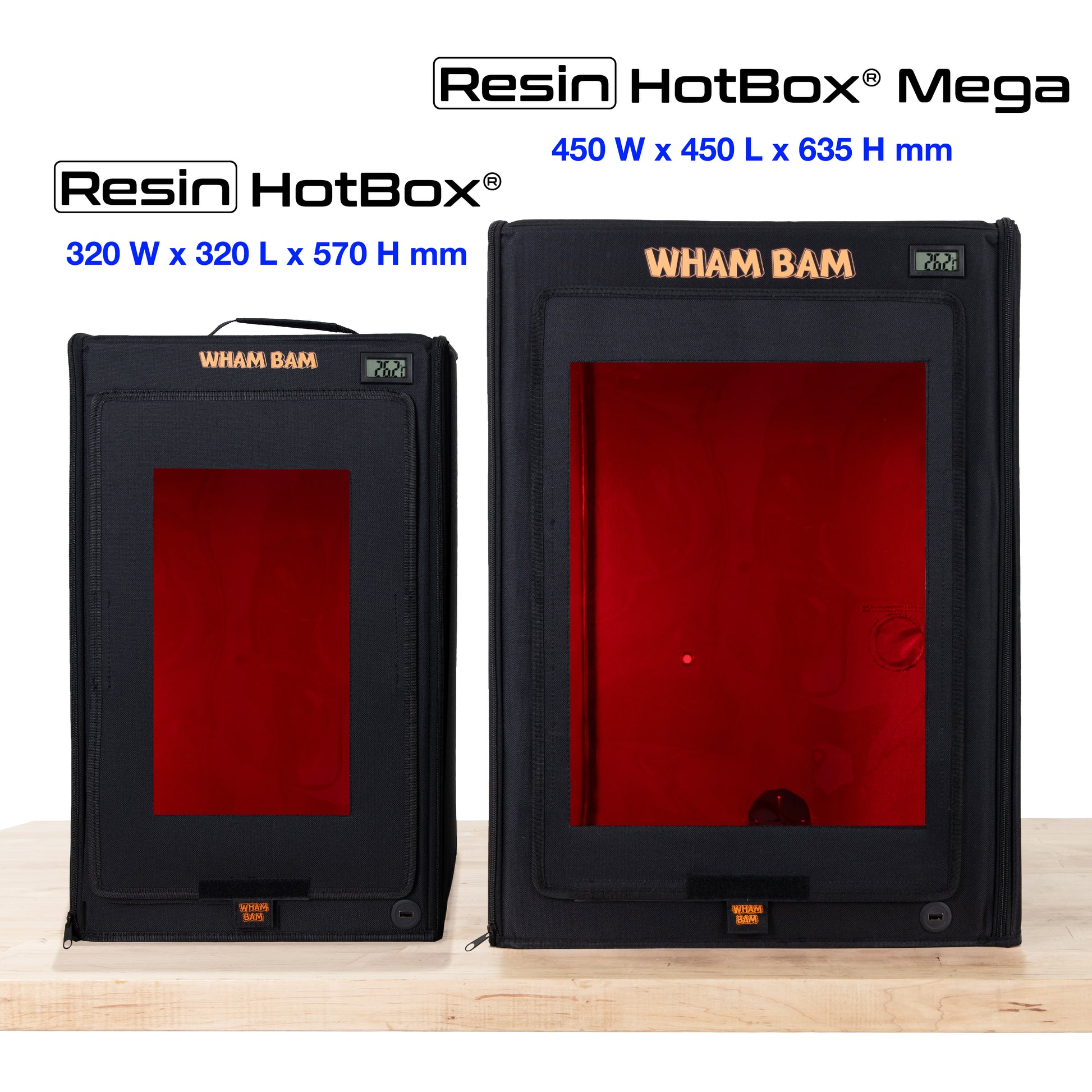

- External - 450 mm x 450 mm x 635 mm
- Product weight - 3.3 kg, 7.1 lbs
- Brighten your HotBox®! This HotBox® has a loop to add one Resin LED lights inside.
- Protect your home and workspace from fire with the Cloud® - Personal Printer Sentry.
Video Install of the Resin HotBox®
Download our Resin HotBox® instructions.

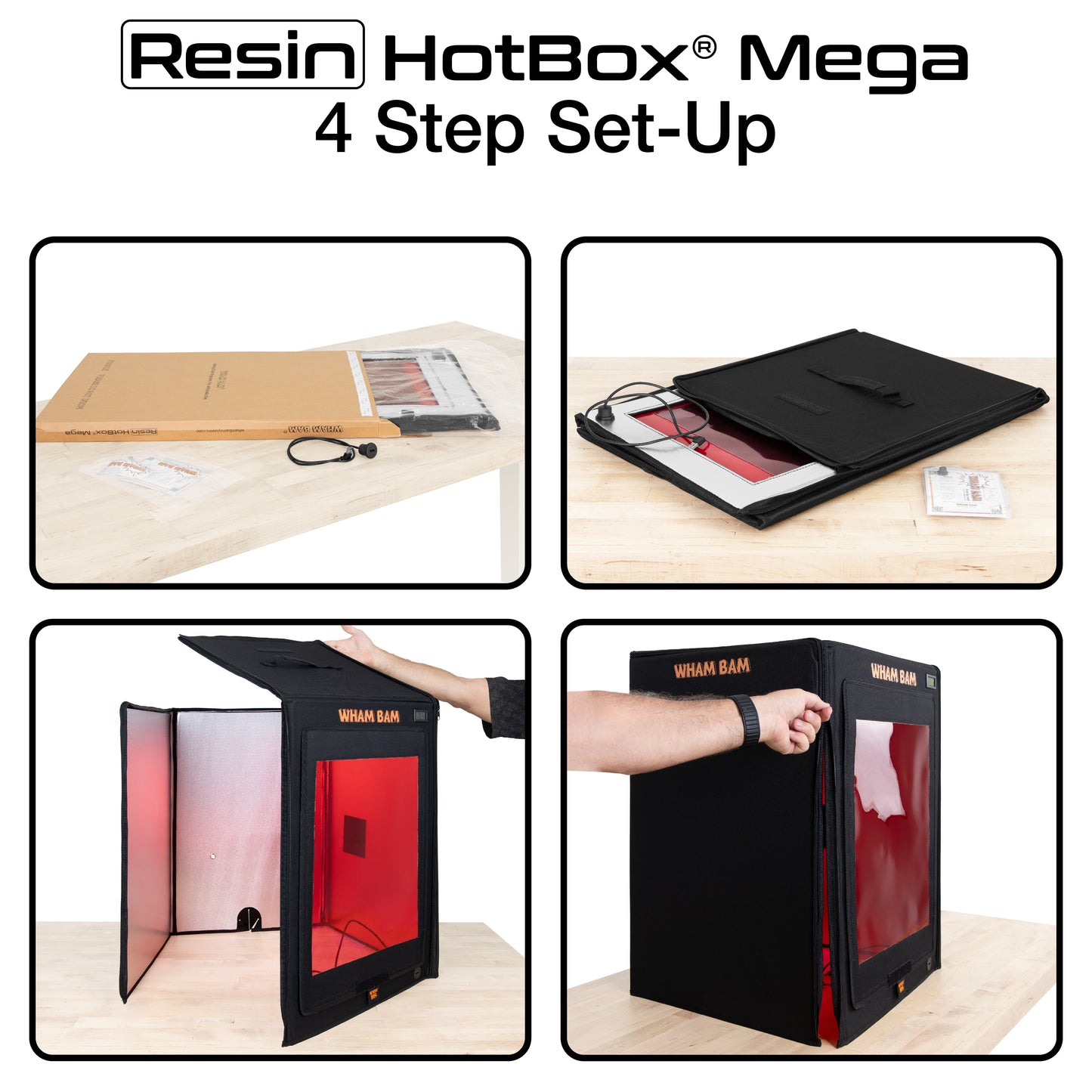

- Unpack all components from the enclosure’s box, ensuring all parts are included.
- Remove your Resin HotBox® Mega from its packaging, unfold, and lay flat with the metallic side upward.
- Locate the small rectangular rear of the thermometer. Push the cover in the direction of the arrow and swing it upward. You will need to purchase 2 LR44 Batteries (also listed as A76 or 357) and Insert 2 LR44 batteries with the + side up (large smooth side). Push each down so it clicks in. Now swing down the cover and slide it in the other direction to close.
- Locate your USB extender and remove from its packaging. Unscrew the backing nut that is already on the USB extender by turning it counter clockwise. With the backing nut off, insert the cable through the hole from outside to inside. Put the backing nut on the cable and screw it to the USB extender main body until it has tightened and sandwiched itself onto the front panel of the Resin HotBox®.
To see the HotBox® in action, please check out our HotBox® YouTube Playlist.
