Magnetic Base - 410 x 410

Regular price $62.00 USD
Sale price $62.00 USD Regular price
Sale Sold out
Shipping calculated at checkout.
 More payment options

Pickup available at 290 Federal Highway

Usually ready in 2 hours

Product Details

Collapsible Sections with Rounded Corners

Fits: Creality CR-10S4 and Elegoo OrangeStorm Giga

(Please see full printer list below on the 'Fits & Contents' tab)

The Wham Bam Magnetic Base has been specially formulated to resist high temperatures for long periods of time, while giving the best performance on the market. They are 1mm thick and pre-backed with high-temperature 3M adhesive making installation a breeze! These powerful, temperature resistance magnets that ensure the build plate stays perfectly aligned during printing. Explore more info on the Flexible Build System.

Printer Fits:
• Creality CR-10S4
• Elegoo OrangeStorm Giga
• FORMBOT Raptor
• gCreate gMax
• German RepRap X400
• T-REX and 2+
• Vivedino Raptor 2
• Vivedino T-Rex 3.0
• VORON Design Core XY

May fit:
• Alfawise U10
• Anycubic Chiron
• Anycubic Kobra Max
• Formbot Troodon 400
• gCreate gMax 1.5 XT+
• HE3D H500
• Mass Portal Grand Pharaoh ED 40
•RAISCUBE T9
• Tronxy 5SA-400

Do you have a printer similar to what's listed under Printer Fits or May Fit?
If you have a printer similar to the one described above and believe our solution could work for your printer, please follow our easy instructions on measuring your build plate. Let us know if your printer matches our specifications or is even close! We’d love to hear about it, and you might even receive a discount on Wham Bam® merchandise for your efforts. Click here for more info.

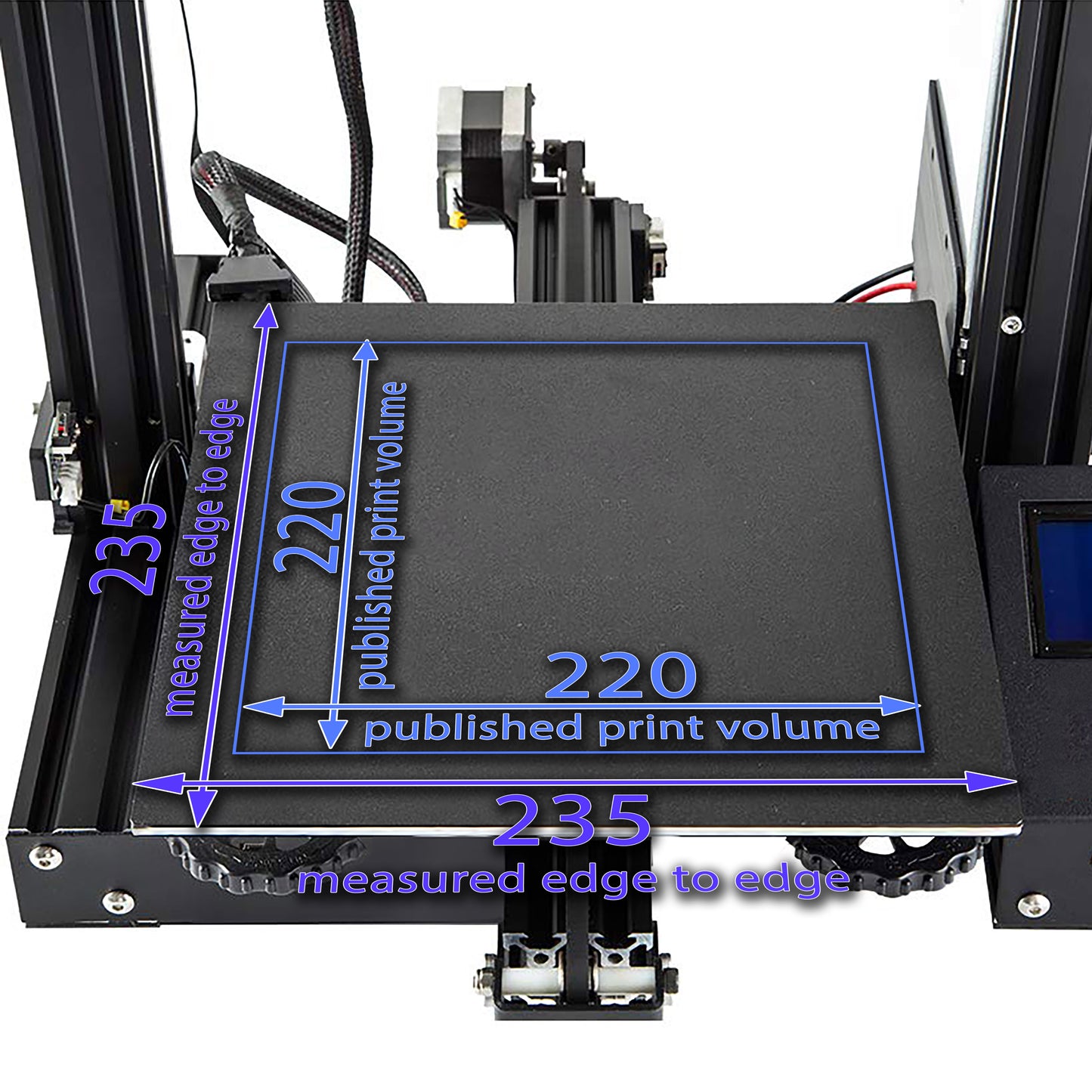

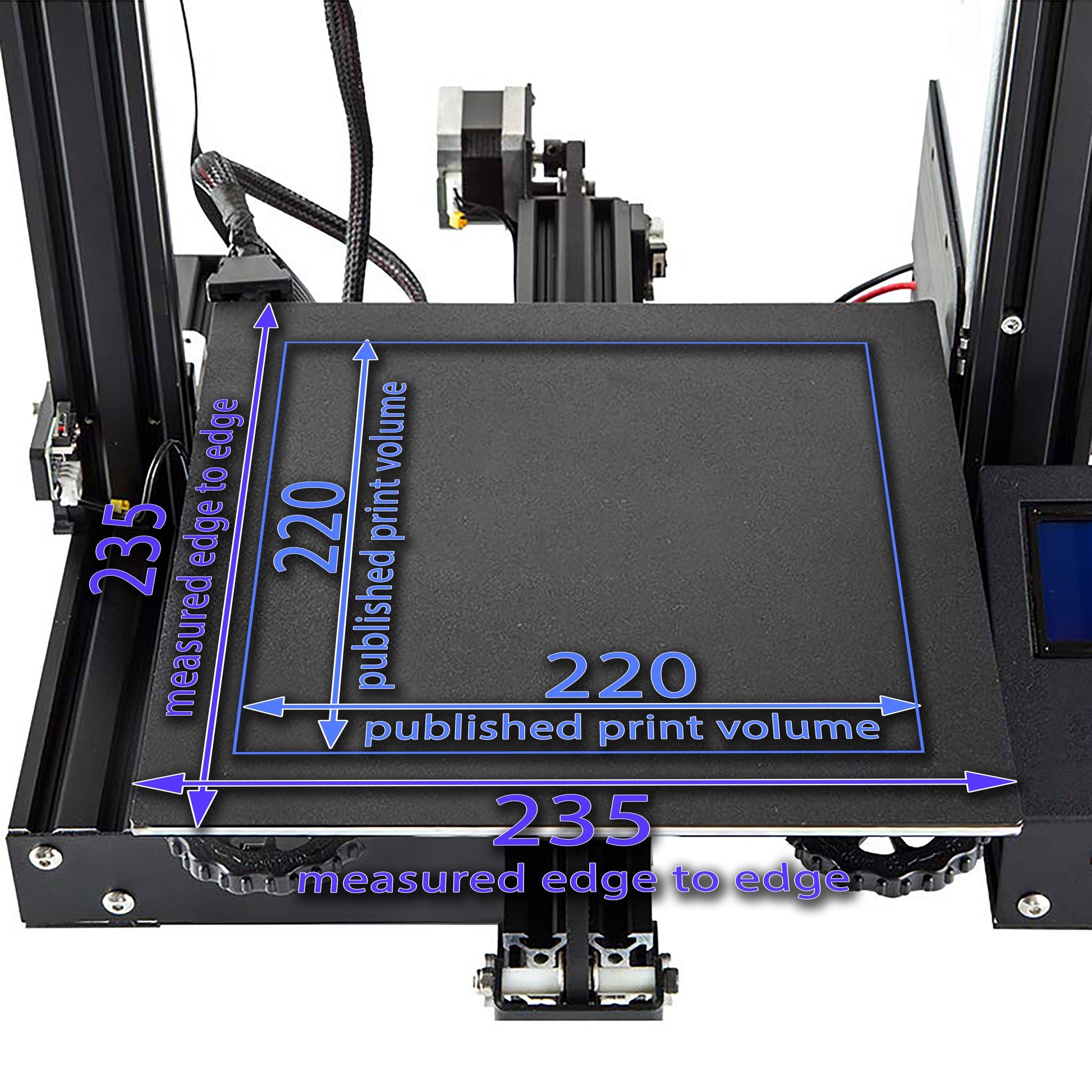

Measure Your Build Plate

Includes:

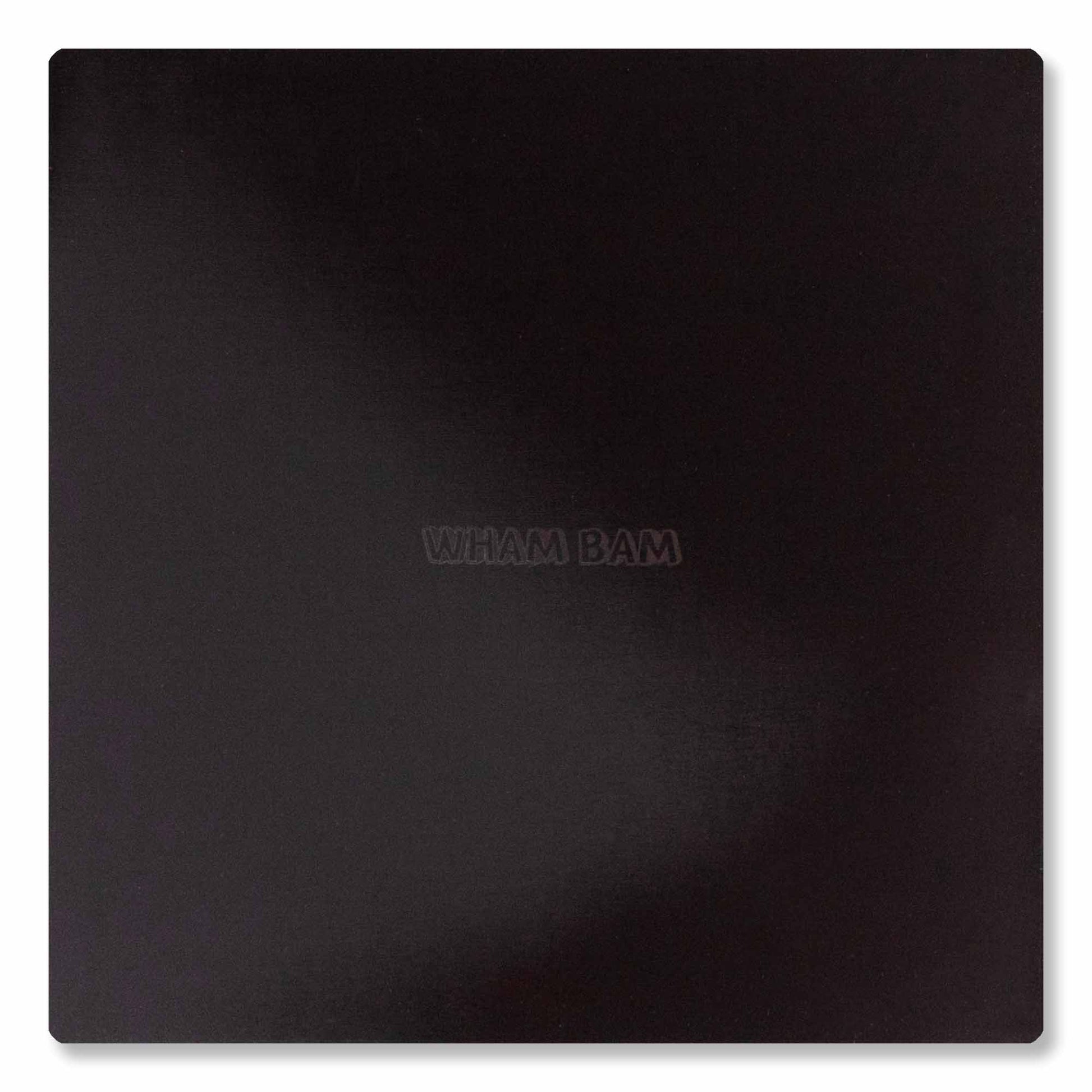

  • 1 Magnetic Base
Dimensions:
  • 410 x 410 mm
  • Magnetic Base 1mm
Heat Limits:
Magnetic Base with 3M Glue rated to 150°C continual use

Please follow these steps when applying a new Magnetic Base:

  1. Remove old magnet (if any), and clean the bed well to remove any glue. Use isopropyl alcohol and a fresh paper towel.
  2. Use 220 grit sandpaper to rough up the metal surface uniformly and remove any excess contaminants. If your surface is painted, try to break through the paint layer with the sandpaper at least partially.
  3. Clean with 90% isopropyl alcohol and a fresh paper towel. Repeat with alcohol and a fresh paper towel a few times until the paper towel comes away clean. Do not use shop rags, wipes, etc., as these will propagate contaminants back to the surface. Use only fresh paper towels.
  4. Let the bed completely dry before applying the magnet.
  5. Let 3M cure for a full 72 hours before use.

Magnetic Base install video clip:


If your machine has automatic bed leveling, run the leveling process and set your gap such that the first layer is well squished. For more details on achieving the right first layer squish, refer to this bed leveling guide.

If your printer uses manual leveling, follow the same guide for instructions on the leveling process.


Full support info can be found on our support page.
