ULTIM8™ VAT - Ultimate VAT Cleaning Tool

Regular price $14

In stock

Description

Introducing the ULTIM8™ VAT – your new go-to tool for quick and efficient FEP cleaning after print failures or whenever you suspect hardened resin particles. For use when executing a screen clean, also known as an FEP or tank clean depending on your printer brand. Learn more about how to clean your vat using this tool.

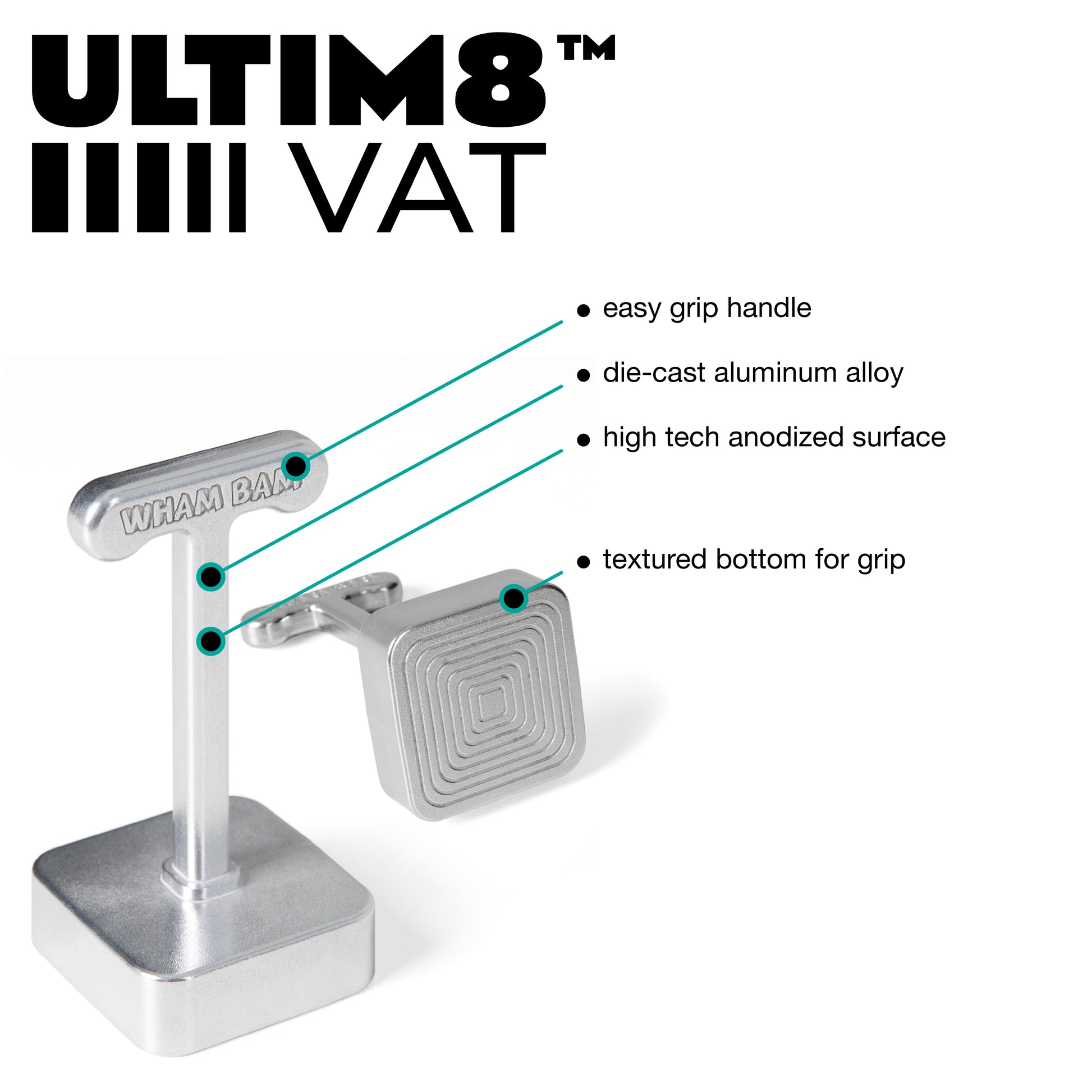

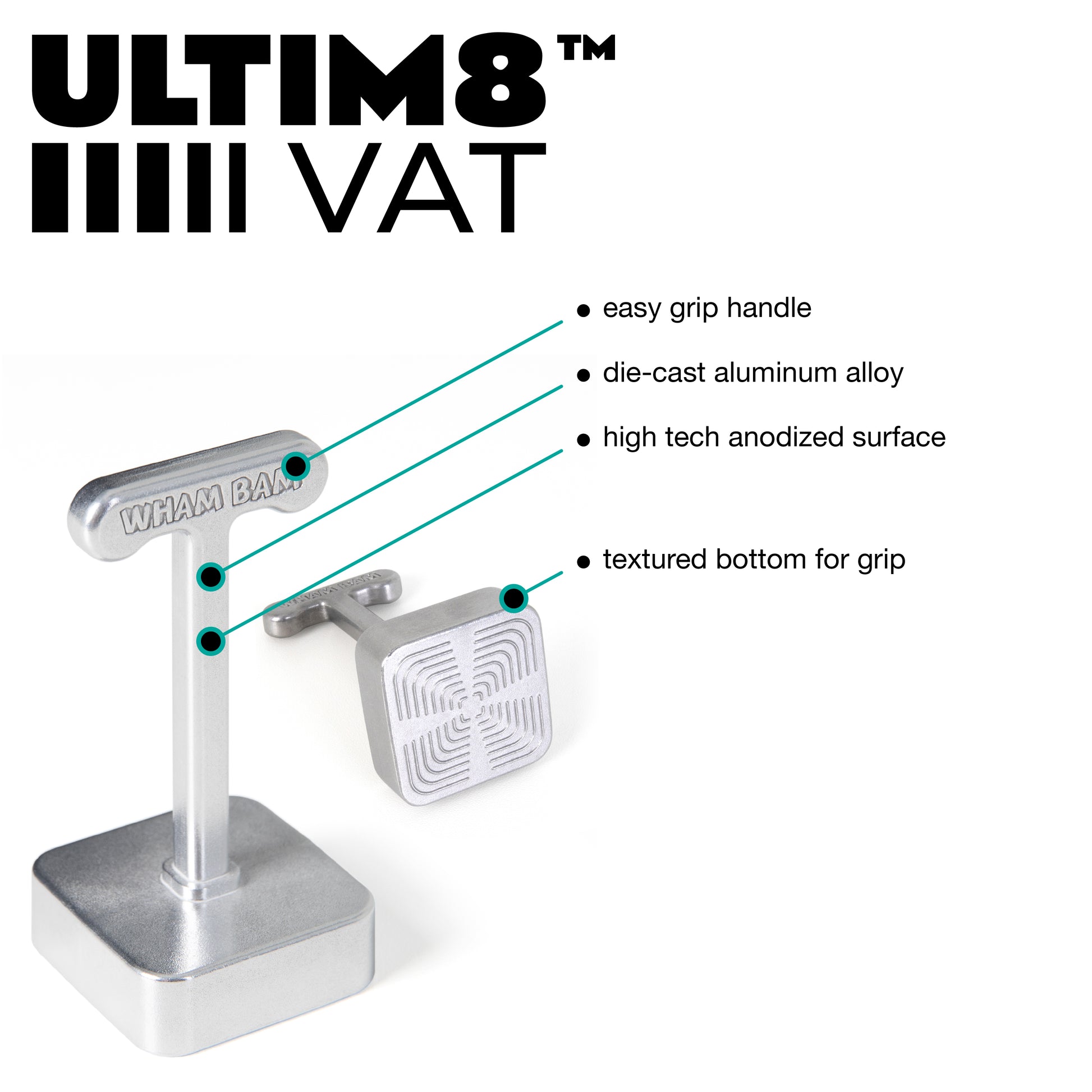

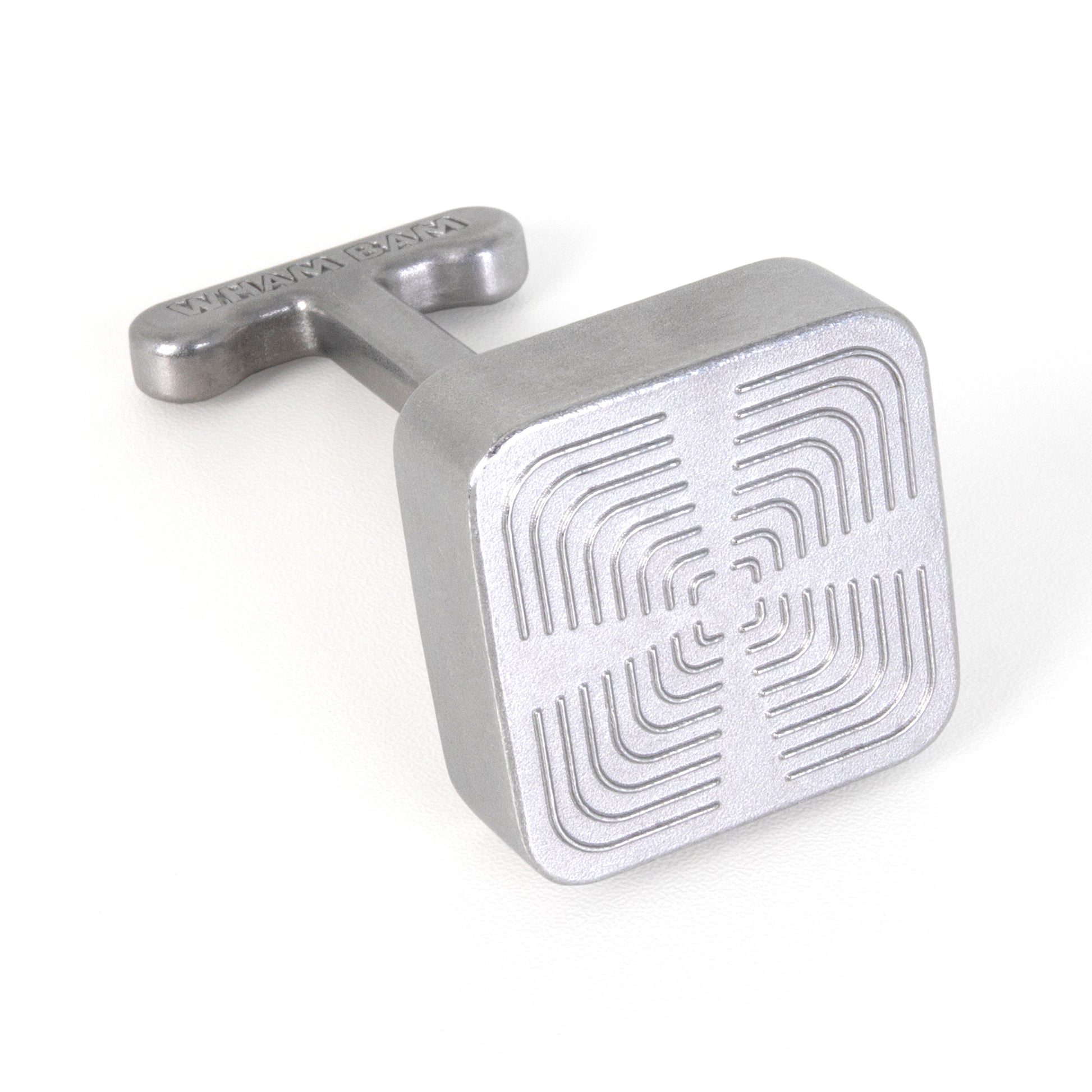

Crafted from a single piece of die-cast aluminum alloy, the ULTIM8™ VAT features a grit-blasted surface for optimal texture—allowing it to grip but easily release cured resin. Its multiple-stage oxidation and anodization process ensures a durable, hard exterior finish, making it nearly indestructible. Resistant to prolonged exposure to resin, IPA, and all solvents, the ULTIM8™ VAT is built to last.

What's Included:
  • 1 ULTIM8™ VAT
Composition:

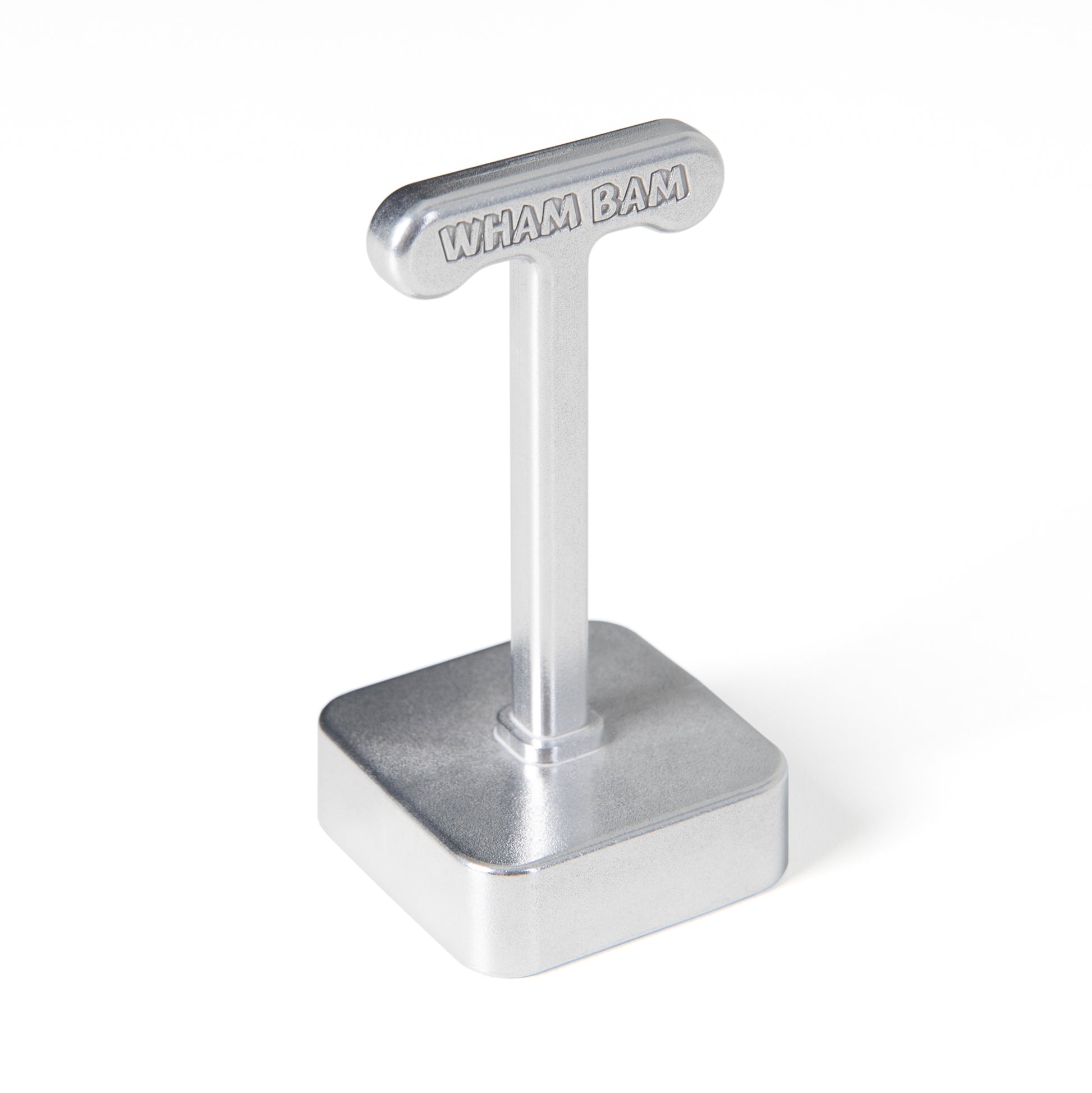

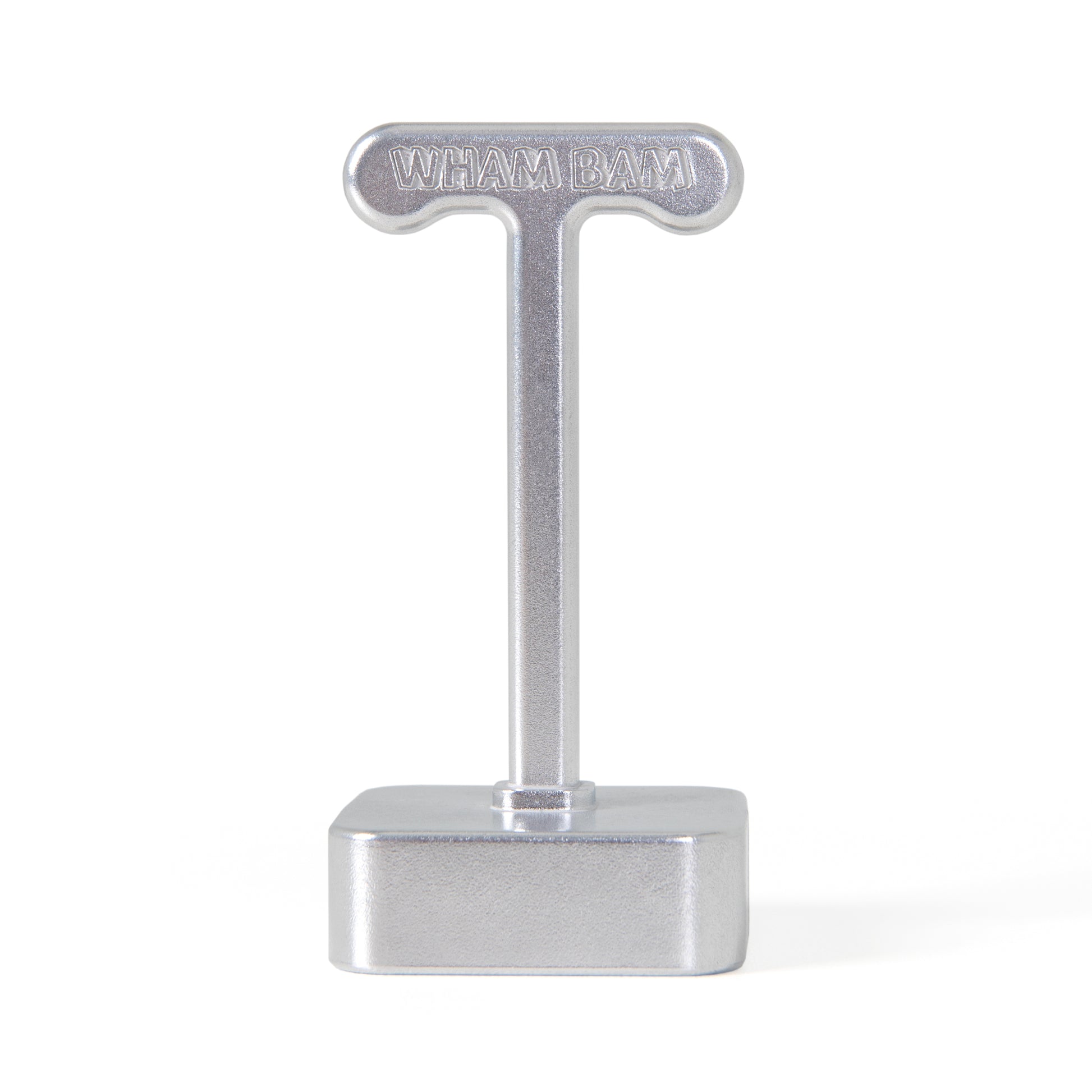

The ULTIM8™ VAT is made of a single piece of diecast aluminum alloy. It has been treated with a multiple oxidation and anodization process to ensure a hard external finish. It is nearly indestructible, and resistant to long periods in resin, IPA, and all solvents.

Specifications:
  • Die cast aluminum alloy
  • Grit Blasted, Oxidized, Anodized
  • 40 x 40 x 80mm tall
  • 64 g

Click here for the downloadable instructions.

Attention: when working with resin always use the appropriate eye protection and gloves to avoid contact with the resin.

Steps for Use:


  1. Raise your build plate toward the top of the Z-axis.
  2. If your resin has been sitting for more than a few days, mix it thoroughly to prevent separation, which can lead to incurable areas. Use a soft silicone spatula, such as Wham Bam’s ULTIM8™ WYP, to gently stir the resin in the vat, ensuring a homogeneous solution. While mixing, check for any hardened pieces in the vat; if found, carefully remove and dispose of them.

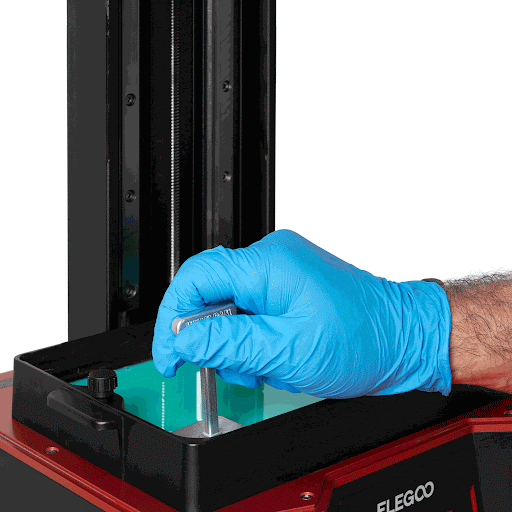

  1. Place your ULTIM8™ VAT base down toward the corner of your vat, it should be positioned in such a way that 75-80% of the tool overlays the screen and the rest overlays the border such that it provides a great corner peel.
  2. Use a light pressure down while swirling slightly the ULTIM8™ VAT to ensure the bottom releases and makes contact with the FEP.
  3. Use your machine control panel to find the screen clean function and activate it.
  4. Hold down the ULTIM8™ VAT while the cleaning cycle is active.

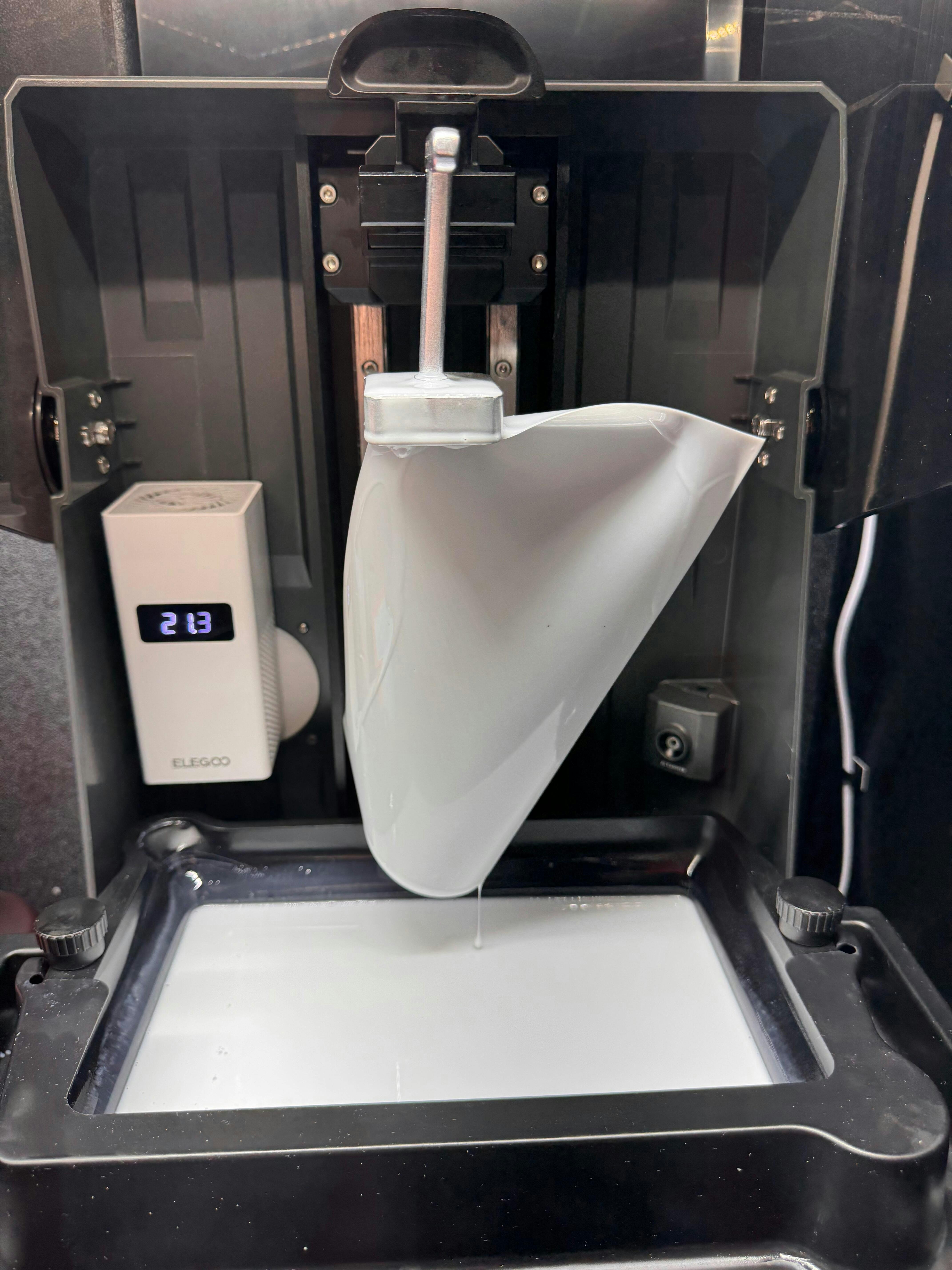

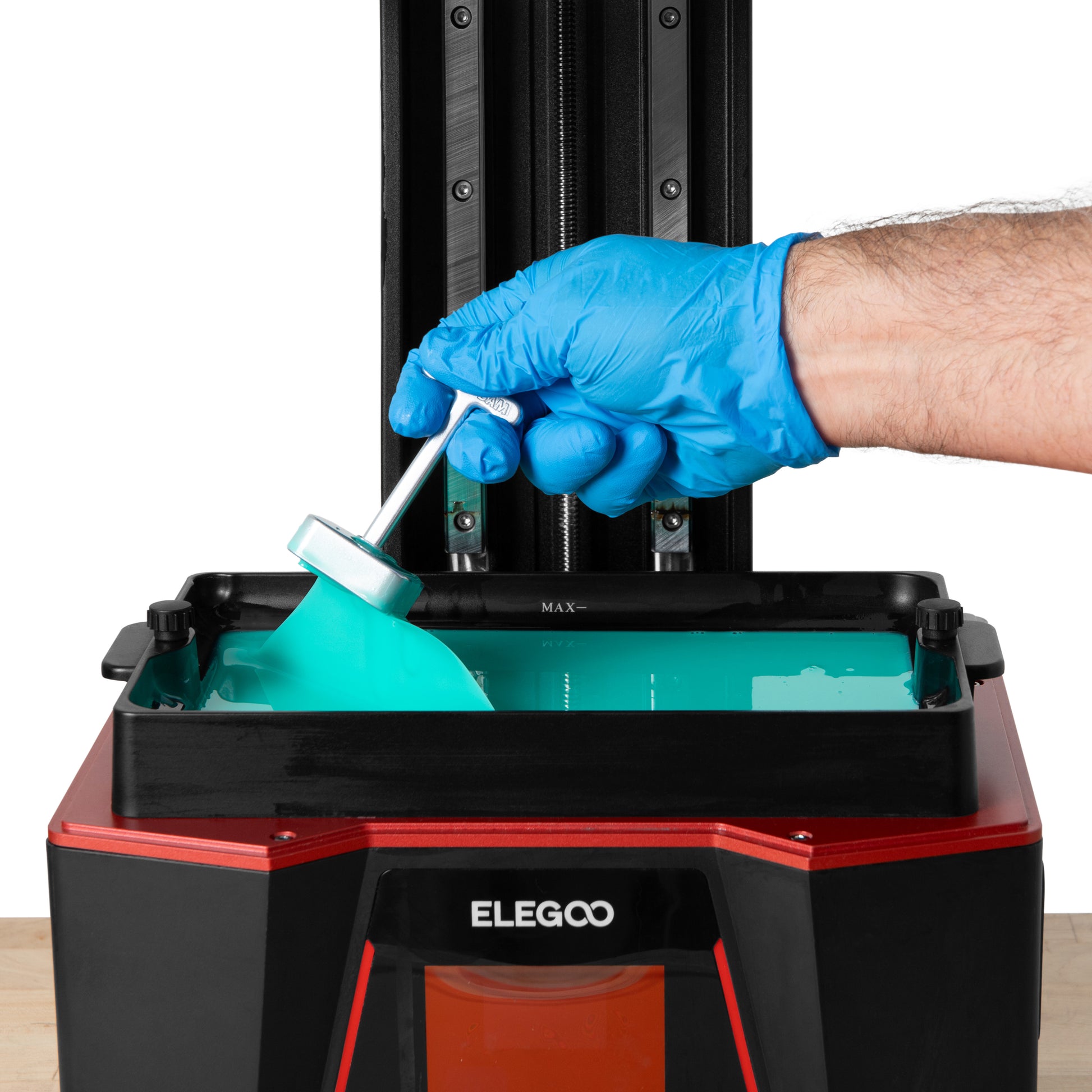

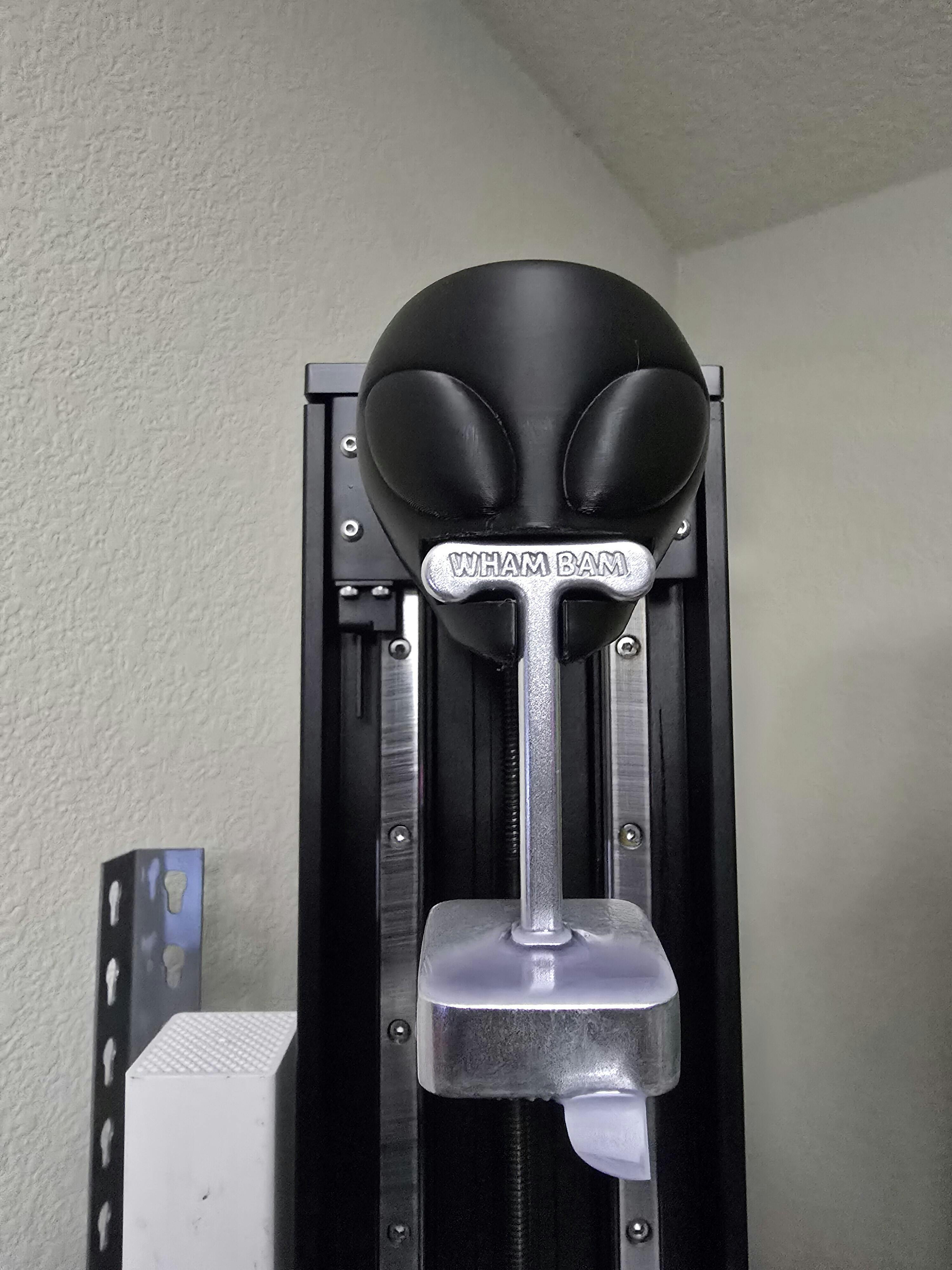

  5. When the cleaning function is finished, use a piece of cardboard or tray as a drip catcher while lifting upward in a prying motion on the handles of the ULTIM8™ VAT to lift a cured flat layer of resin out of the vat. Allow the excess resin to drip off. Frequently, you can find ways of hanging the ULTIM8™ VAT by the handle on your build plate holder, or download our free drip holder or the Whammy head holder.

  1. When done dripping, remove the whole tool and resin. Peel the cured resin off of the ULTIM8™ VAT. Dispose of the cured resin and drop your ULTIM8™ VAT in some IPA for a final clean.
  2. If you have any resin remaining in the bottom grooves, leave the ULTIM8™ VAT in IPA overnight and the remnants will drop right out.
  3. You are ready to print!

Note: If you observe significant chunks or other particles remaining in your resin, it's advisable to remove the vat, strain it using a funnel and strainer like our ULTIM8™ FUN, and thoroughly clean your equipment.
